If your NEONNOW instance is enabled with the Email channel, you may receive interactions from customers via Email.
Receiving Inbound emails

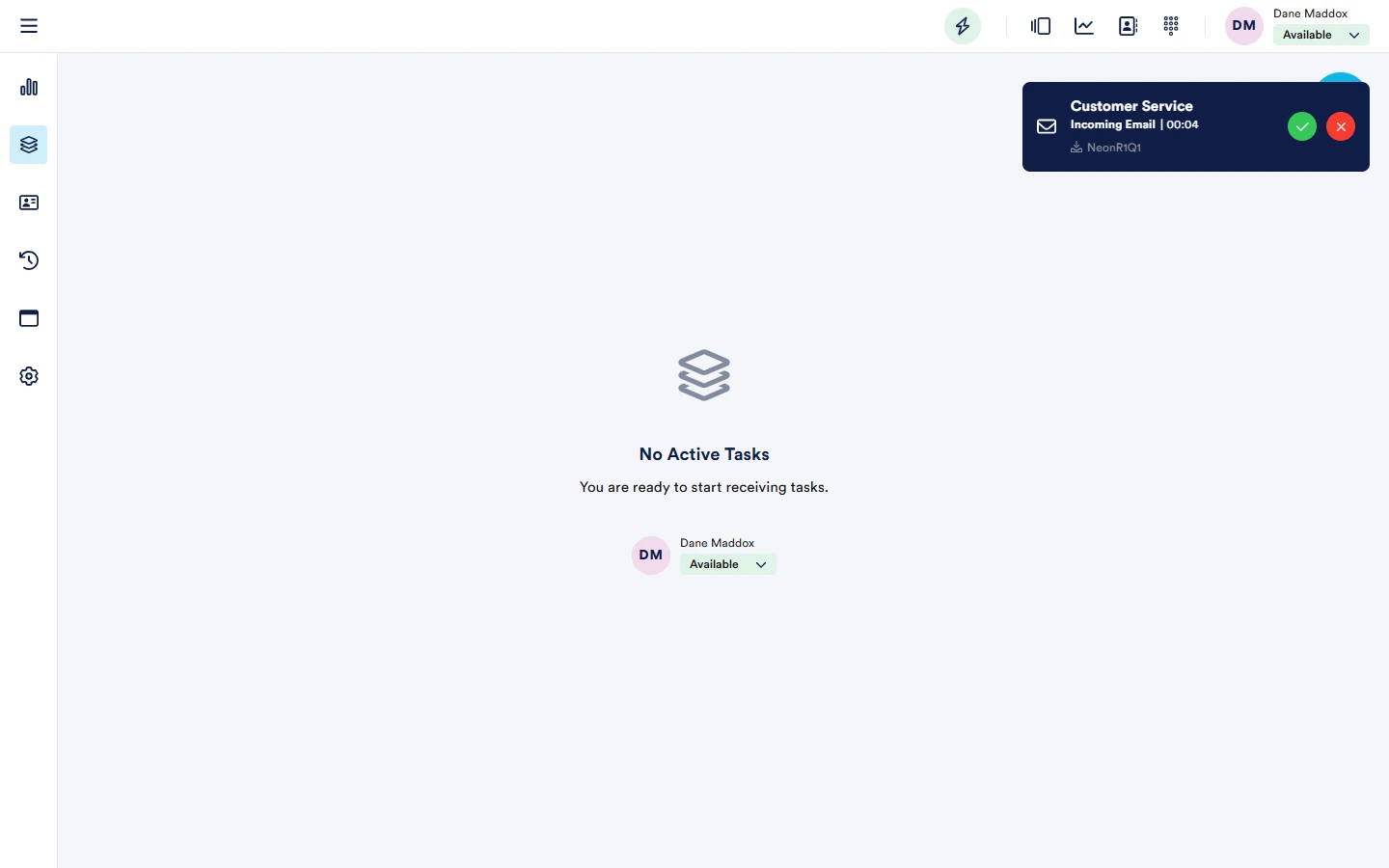

An inbound Email will appear as a standard inbound contact notification per below. The Queue, Email Subject and any 'Attached Data' will all be displayed as per below:
Once answered, the full email will render. Standard interaction controls apply to email, just like any other interactions in terms of:
- Wrap Updates
- Attached Data
- Transfer to Directory Contact
- Transfer to another queue
However, two new controls are included for Email specifically:
- Reply - to reply back to the customer
- Forward - to forward the customer's email to another external mailbox outside the contact centre
Note, transferring the email to another team/agent within the contact centre should use the 'transfer' functionality over 'Forward' as this keeps the reporting/routing within NEONNOW.

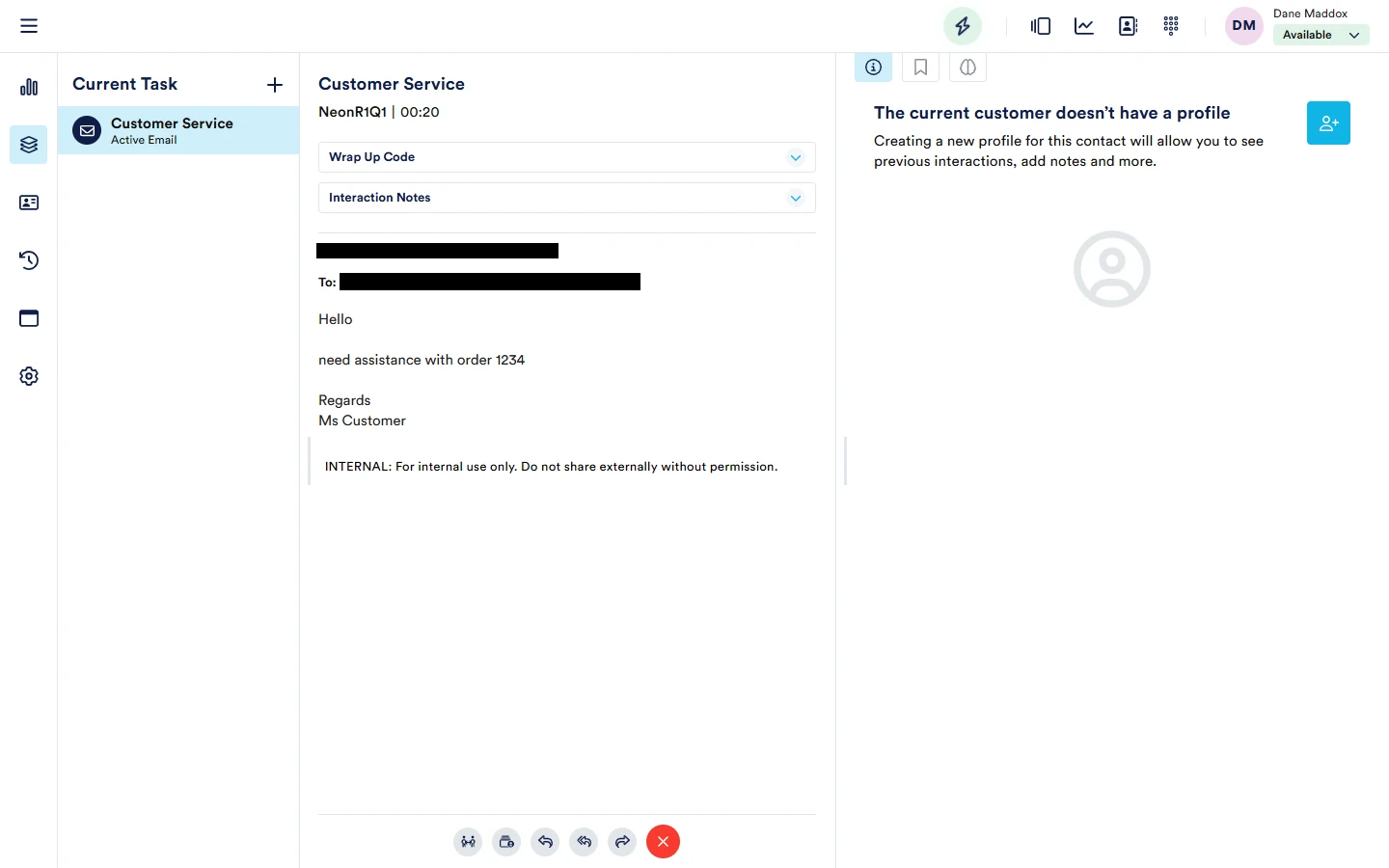

The following shows a sample inbound Email interaction.
Controls highlighted below from left to right:
- Transfer to directory contact
- Transfer to Queue
- Complete (do not reply)
- Reply
- Forward (to another email address)
Replying to Emails

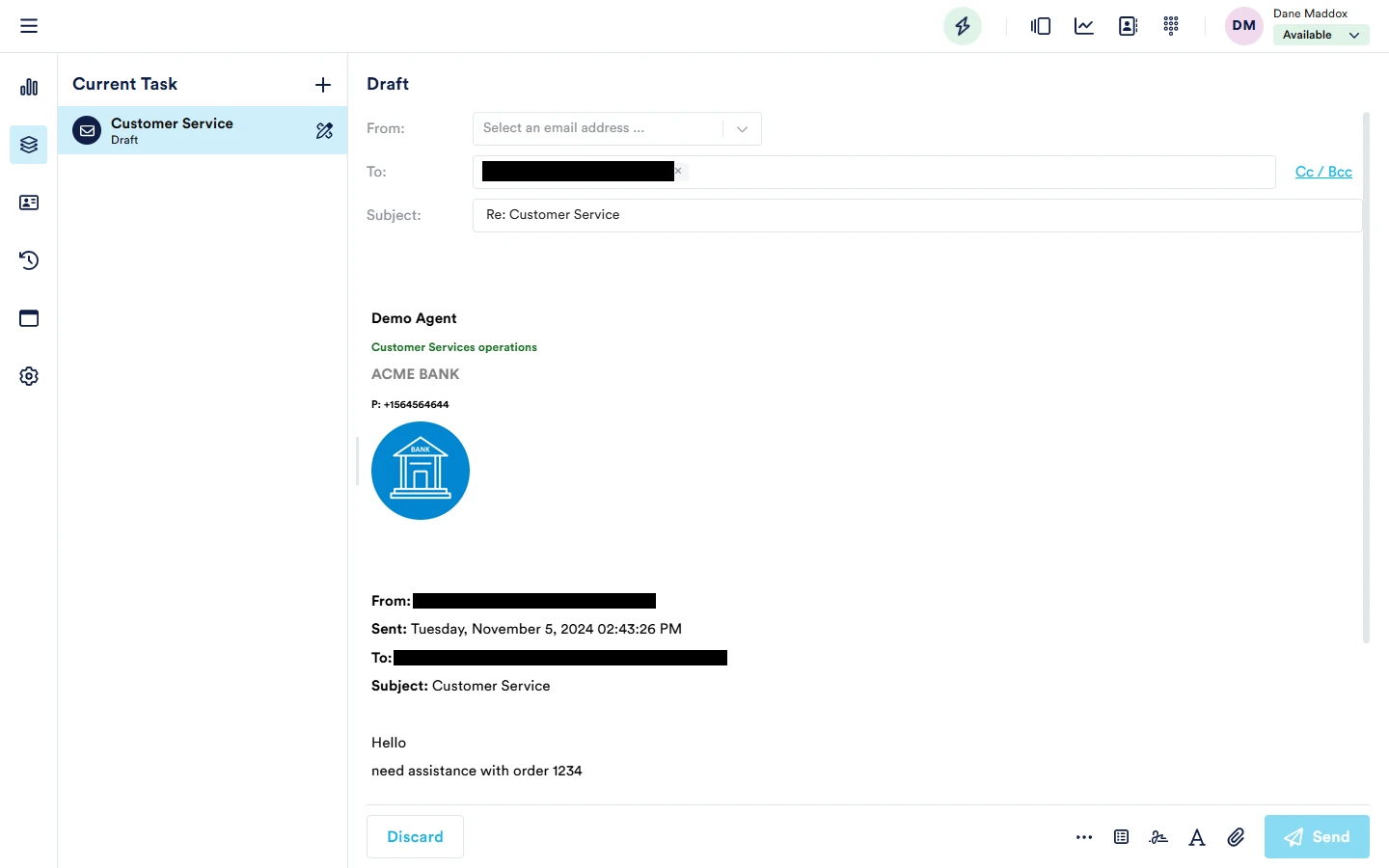

Using the Reply button on an incoming email will display the 'Reply email' view as shown below:
First, select the 'From address' to display to the customer, as indicated by '1' above.
Then, use the email controls to construct the email, using:
- Rich Text format - add formatting such bold/italics, or change text colour. To use the Rich Text editor, select text and then in the Rich text editor select the specific style to apply.
- Adding attachments using the 'attachment' icon - upload file attachments to send to the customer. Note, the following file types are not allowed; .bat, .exe, .js, .jar
The lower controls, as indicated by '2' above are from left to right:
- Discard - cancel the reply email and return to the inbound email
- Further options - View original email/view customer profile (if available)/wrap notes
- Templates - apply an template into the email
- Rich text controls
- Add attachments (see blocked email attachment file types )
- Send email
Templates
Like Chat & SMS, templates can be used to send pre-defined outbound messages templates to customers.
To include a template in the message, select the template icon, and select the required template. It will be added to the active email interaction, at the start of the body.
If desired, enter a search term, then select the Template.
The template text is inserted into the reply:
Forwarding Emails

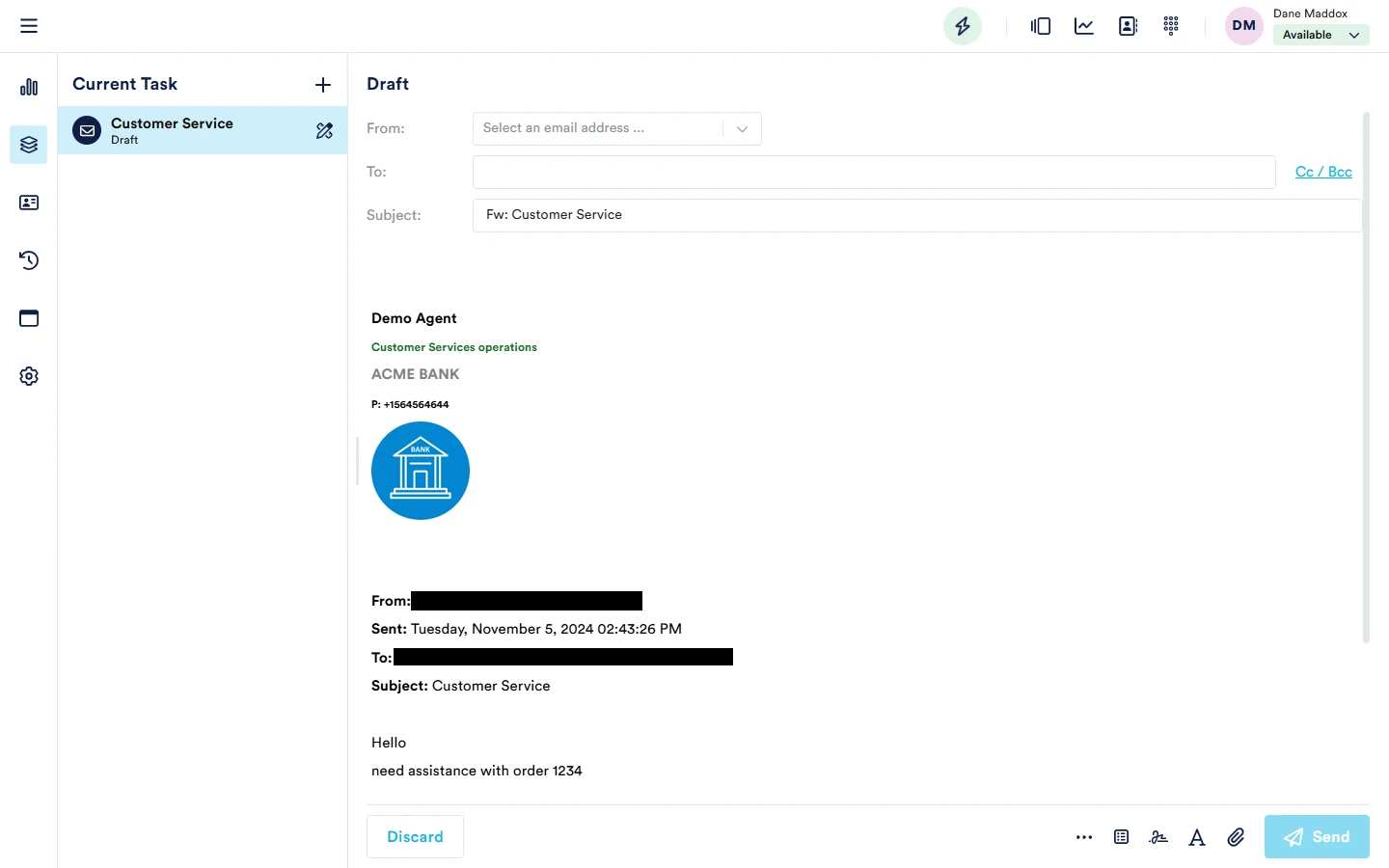

Selecting the forward button will result in the following screen. The email forward screen will allow you enter the From and To address, as well as any additional information to the body:
Sending Outbound Emails
New emails can be constructed at any time and sent to customers.

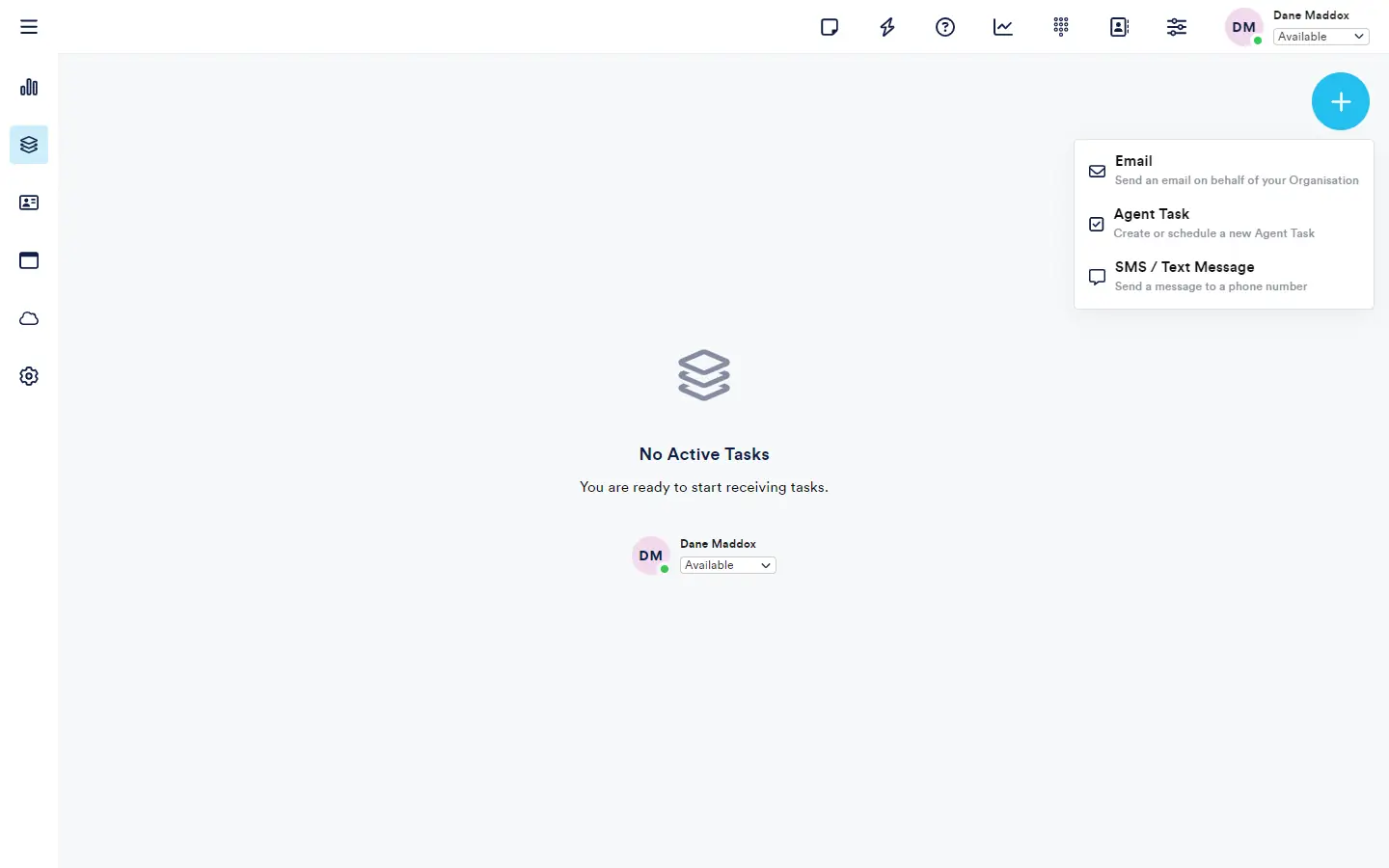

To send a new email, either select the 'Create New' plus button on the top right of NEONNOW, then select 'Email':

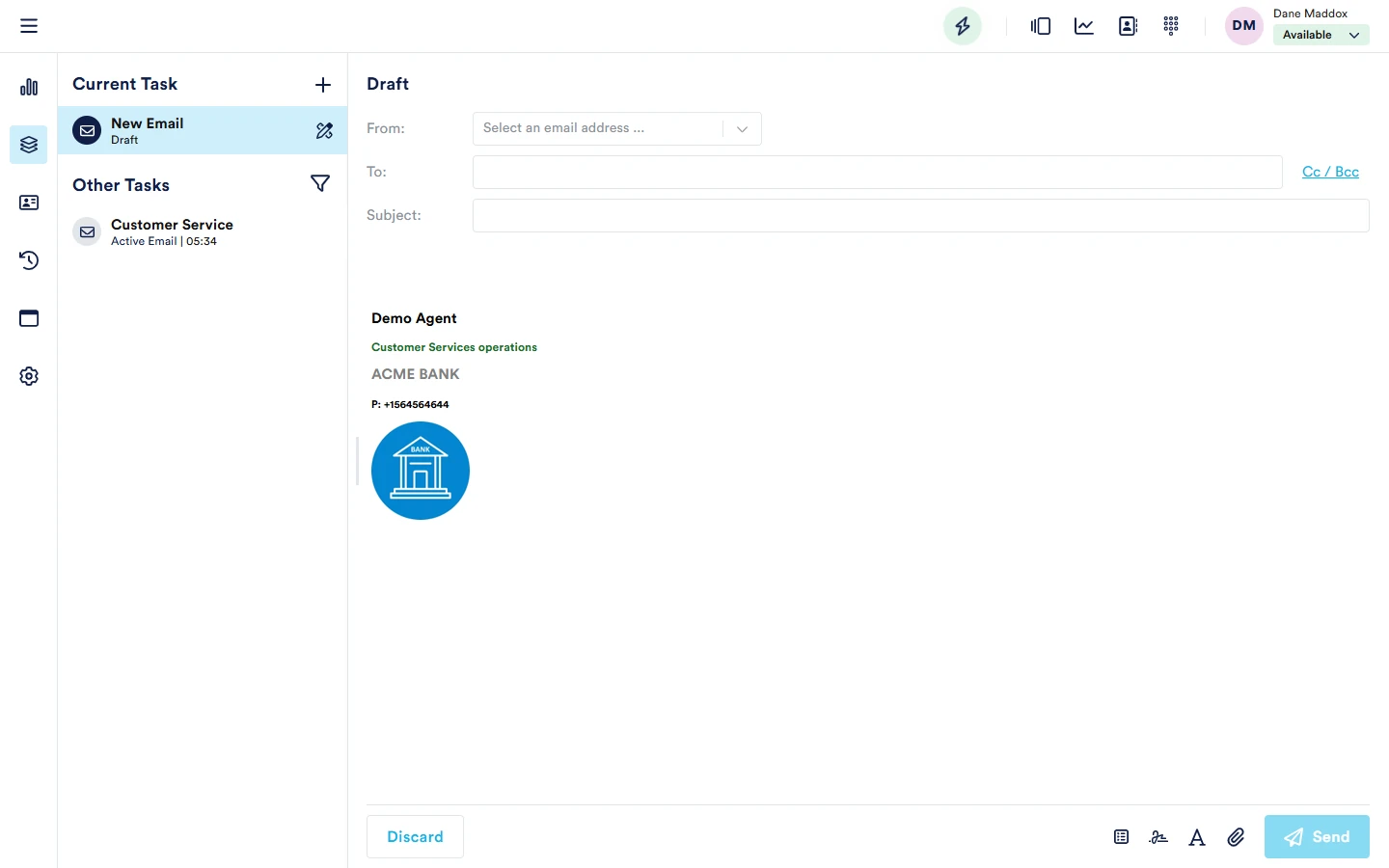

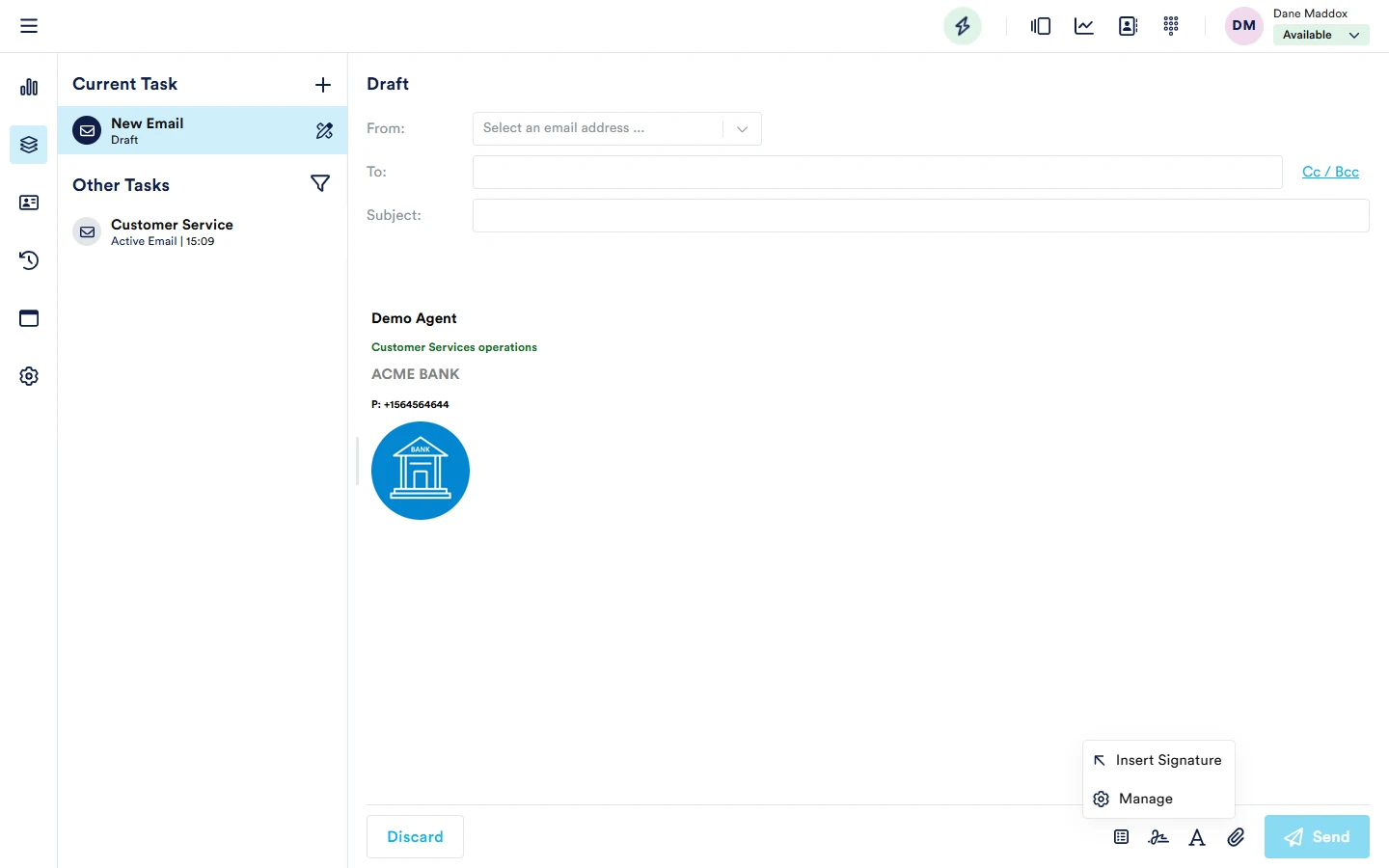

The email editor is now shown and a new email can be constructed. The following screen shows the controls.
Templates
Templates can be used for outbound emails, in the same way as replies.
Transferring Emails
Transferring all active interactions is carried out in the same way. Please refer to Softphone Transfers
Wrap Codes & Notes
Entering a wrap code is an optional step, which applies to all interaction types. Please refer to ACW Wrap Codes
Blocked File Types
Here is a complete list of blocked file types for NEONNOW email and their descriptions, as they may be potentially unsafe:
| File name extension | File type |
|---|---|
| .ade | Access Project Extension (Microsoft) |
| .adp | Access Project (Microsoft) |
| .app | Executable Application |
| .application | ClickOnce Deployment Manifest File |
| .appref-ms | ClickOnce Application Reference File |
| .asp | Active Server Page |
| .aspx | Active Server Page Extended |
| .asx | ASF Redirector File |
| .bas | BASIC Source Code |
| .bat | Batch Processing |
| .bgi | Borland Graphics Interface |
| .cab | Windows Cabinet File |
| .cer | Internet Security Certificate File |
| .chm | Compiled HTML Help |
| .cmd | DOS CP/M Command File, Command File for Windows NT |
| .cnt | Microsoft Help Workshop Application |
| .com | Command |
| .cpl | Windows Control Panel Extension (Microsoft) |
| .crt | Certificate File |
| .csh | csh Script |
| .der | DER Encoded X509 Certificate File |
| .diagcab | Microsoft Diagnostics Cabinet File |
| .exe | Executable File |
| .fxp | FoxPro Compiled Source (Microsoft) |
| .gadget | Windows Vista Gadget |
| .grp | Microsoft Program Group |
| .hlp | Windows Help File |
| .hpj | AppWizard Help project |
| .hta | Hypertext Application |
| .htc | HTML Component File |
| .inf | Information or Setup File |
| .ins | IIS Internet Communications Settings (Microsoft) |
| .iso | Optical Disk Media File System |
| .isp | IIS Internet Service Provider Settings (Microsoft) |
| .its | Internet Document Set, Internet Translation |
| .jar | Java Archive |
| .jnlp | Java Network Launching Protocol |
| .js | JavaScript Source Code |
| .jse | JScript Encoded Script File |
| .ksh | UNIX Shell Script |
| .lnk | Windows Shortcut File |
| .mad | Access Module Shortcut (Microsoft) |
| .maf | Access (Microsoft) |
| .mag | Access Diagram Shortcut (Microsoft) |
| .mam | Access Macro Shortcut (Microsoft) |
| .maq | Access Query Shortcut (Microsoft) |
| .mar | Access Report Shortcut (Microsoft) |
| .mas | Access Stored Procedures (Microsoft) |
| .mat | Access Table Shortcut (Microsoft) |
| .mau | Media Attachment Unit |
| .mav | Access View Shortcut (Microsoft) |
| .maw | Access Data Access Page (Microsoft) |
| .mcf | Media Container Format |
| .mda | Access Add-in (Microsoft), MDA Access 2 Workgroup (Microsoft) |
| .mdb | Access Application (Microsoft), MDB Access Database (Microsoft) |
| .mde | Access MDE Database File (Microsoft) |
| .mdt | Access Add-in Data (Microsoft) |
| .mdw | Access Workgroup Information (Microsoft) |
| .mdz | Access Wizard Template (Microsoft) |
| .msc | Microsoft Management Console Snap-in Control File (Microsoft) |
| .msh | Microsoft Shell |
| .msh1 | Microsoft Shell |
| .msh2 | Microsoft Shell |
| .mshxml | Microsoft Shell |
| .msh1xml | Microsoft Shell |
| .msh2xml | Microsoft Shell |
| .msi | Windows Installer File (Microsoft) |
| .msp | Windows Installer Update |
| .mst | Windows SDK Setup Transform Script |
| .msu | Windows Update File |
| .ops | Office Profile Settings File |
| .osd | Open Software Description |
| .pcd | Visual Test (Microsoft) |
| .pif | Windows Program Information File (Microsoft) |
| .pl | Perl script |
| .plg | Developer Studio Build Log |
| .prf | Windows System File |
| .prg | Program File |
| .printerexport | Printer backup File |
| .ps1 | Windows PowerShell |
| .ps1xml | Windows PowerShell |
| .ps2 | Windows PowerShell |
| .ps2xml | Windows PowerShell |
| .psc1 | Windows PowerShell |
| .psc2 | Windows PowerShell |
| .psd1 | Windows PowerShell |
| .psdm1 | Windows PowerShell |
| .pst | MS Exchange Address Book File, Outlook Personal Folder File (Microsoft) |
| .py | Python Script |
| .pyc | Python Script |
| .pyo | Python Script |
| .pyw | Python Script |
| .pyz | Python Script |
| .pyzw | Python Script |
| .reg | Registration Information/Key for W95/98, Registry Data File |
| .scf | Windows Explorer Command |
| .scr | Windows Screen Saver |
| .sct | Windows Script Component, Foxpro Screen (Microsoft) |
| .shb | Windows Shortcut into a Document |
| .shs | Shell Scrap Object File |
| .theme | Desktop Theme File Settings |
| .tmp | Temporary File/Folder |
| .url | Internet Location |
| .vb | VBScript File or Any Visual Basic Source |
| .vbe | VBScript Encoded Script File |
| .vbp | Visual Basic Project File |
| .vbs | VBScript Script File, Visual Basic for Applications Script |
| .vhd | Virtual Hard Disk |
| .vhdx | Virtual Hard Disk Extended |
| .vsmacros | Visual Studio .NET Binary-based Macro Project (Microsoft) |
| .vsw | Visio Workspace File (Microsoft) |
| .webpnp | Internet Printing File |
| .website | Pinned Site Shortcut from Internet Explorer |
| .ws | Windows Script File |
| .wsc | Windows Script Component |
| .wsf | Windows Script File |
| .wsh | Windows Script Host Settings File |
| .xbap | Browser Applications |
| .xll | Excel Addin |
| .xnk | Exchange Public Folder Shortcut |
